AL-50 patrol craft (1994)
Arkioi 2004
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 2002- Αρκιοϊ [Arkioi] | ΑΛ-50 [AL-50], 2002- ΛΣ-050 [LS-050] | McTay Marine, Bromborough, UK | 11/1994 | Coast Guard 2002, in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 240 |
| Length, m | 47.3 |
| Breadth, m | 7.50 |
| Draught, m | 2.40 |
| No of shafts | 3 |
| Machinery | 3 Paxman-Valenta 16CM diesels |
| Power, h. p. | 13330 |
| Max speed, kts | 40 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(16) |
| Armament | |
| Electronic equipment | 2x Decca radars |
| Complement | 21 |
Graphics

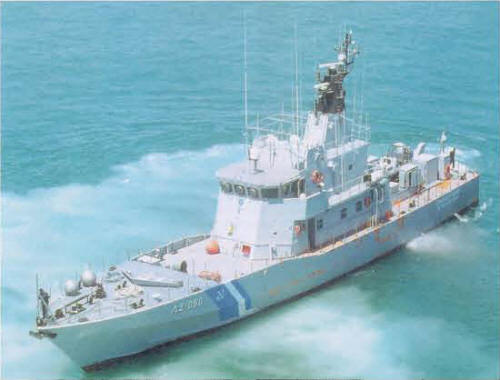

Arkioi 2004
Project history
Vosper Euro Patrol 250 Mk 1 design.
Modernizations
None.
Naval service
In 2002 the craft was transferred to Coast Guard.
