TOLMI patrol craft (1969/1989)





Tolmi 2006

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Τόλμη [Tolmi] (ex-Green Bay) P229   Peterson, Sturgeon Bay, USA 11.1968 14.6.1969 5.12.1969 // 22.11.1989 in service (2019)
Ορμή [Ormi] (ex-Beacon) P230   Peterson, Sturgeon Bay, USA 7.1968 17.5.1969 21.11.1969 // 22.11.1989 in service (2019)


Technical data


Displacement standard, t

225

Displacement full, t

245

Length, m

46.9 pp 50.1 oa

Breadth, m

7.28

Draught, m

2.90

No of shafts

2

Machinery

2 Cummins 875V12 diesels

Power, h. p.

1450

Max speed, kts

16

Fuel, t

diesel oil 50

Endurance, nm(kts)

1700(16)

Armament

1 x 1 - 76/50 Mk 34, 1 x 1 - 40/60 Mk 3, 2 x 2 - 12.7/90

Electronic equipmentDecca, SPS-53, SPG-50 radars
Complement28


Standard scale images

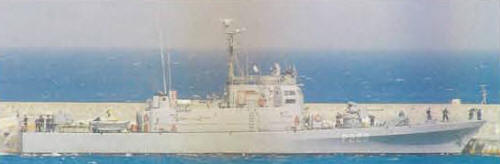

<i>Tolmi </i>1990
Tolmi 1990


Graphics


<i>Tolmi </i>2006
Tolmi 2006


Project history

Former USN Asheville class gunboats, transferred with boost gas turbine removed.

Modernizations

2003, both: - 1 x 1 - 76/50, SPG-50 radar; + 1 x 1 - 40/60 Mk 3

2005, both: diesels were replaced by 2 MTU 12V956 TE94 (4500hp, 20kts)

Naval service

No significant events.
