AFADZATO inshore minesweepers (1958/1959)

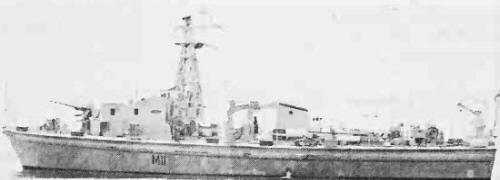

Yogaga 1966
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Yogaga (ex-Malham) | M11 | Fairlie Yacht, UK | 29.8.1958 | 12.1958 // 10.1959 | discarded 1977 | ||
| Afadzato (ex-Ottringham) | M12 | Ailsa, Troon, UK | 22.1.1958 | 12.1958 // 10.1959 | discarded 1977 |
Technical data
| Displacement standard, t | 120 |
|---|---|
| Displacement full, t | 159 |
| Length, m | M11: 30.5 pp 32.8 oa M12: 30.5 pp 32.5 oa |
| Breadth, m | M11: 6.70 M12: 6.60 |
| Draught, m | 1.67 - 1.75 |
| No of shafts | 2 |
| Machinery | 2 Davey Paxman diesels |
| Power, h. p. | 1100 |
| Max speed, kts | 14 |
| Fuel, t | diesel oil 15 |
| Endurance, nm(kts) | 2350(9) |
| Armament | 1 x 1 - 20/70 Mk 7, LL mechanical/magnetic/acoustic minesweeping gear |
| Electronic equipment | type 978 radar |
| Complement | 15 |
Standard scale images
Afadzato 1970
Graphics
Yogaga 1966
Project history
Former British 'Ham' class inshore minesweepers, fitted with funnels before transfer.
Modernizations
None.
Naval service
No significant events.
