ANZONE patrol vessels (1944/2001)

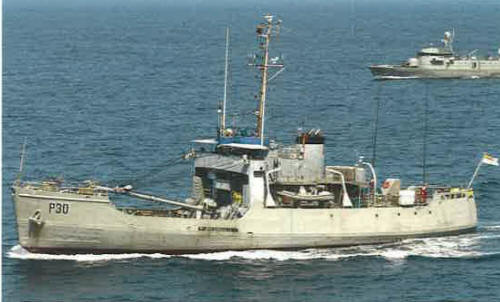

Anzone 2005
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Anzone (ex-Woodrush) | P30 | Duluth Iron SB, Duluth, USA | 4.2.1944 | 28.4.1944 | 22.9.1944 // 4.5.2001 | in service (2019) | |
| Bonsu (ex-Sweetbrier) | P31 | Marine Iron SB, Duluth, USA | 3.11.1943 | 30.12.1943 | 26.7.1944 // 27.8.2001 | in service (2019) |
Technical data
| Displacement standard, t | 700 |
|---|---|
| Displacement full, t | 1025 |
| Length, m | 51.8 pp 54.9 oa |
| Breadth, m | 11.3 |
| Draught, m | 4.00 |
| No of shafts | 1 |
| Machinery | 2 diesel-generators, 1 electric motor |
| Power, h. p. | 1200 |
| Max speed, kts | 13 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 12000(7) |
| Armament | 4 x 1 - 7.6/90 |
| Electronic equipment | SPS-64(v)1, Furuno FR2125, Furuno FA2117 radars |
| Complement | 52 |
Standard scale images
Anzone 2010
Graphics
Anzone 2005
Project history
Former USCG buoy tenders of Balsam class. 20t derrick fwd.
Modernizations
None.
Naval service
No significant events.
