STEPHEN OTU patrol boat (1980/2011)

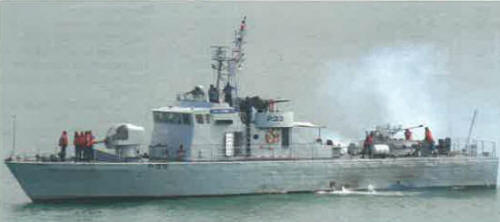

Stephen Otu 2011
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Stephen Otu (ex-기러기 237 [Gireogi 237]) | P33 | Korea Tacoma, Chinhae, South Korea | 1980 // 19.1.2011 | in service (2019) |
Technical data
| Displacement standard, t | 113 |
|---|---|
| Displacement full, t | 144 |
| Length, m | 31.3 pp 32.9 oa |
| Breadth, m | 6.92 |
| Draught, m | 1.75 hull 2.45 propellers |
| No of shafts | 2 |
| Machinery | 2 MTU 16V538 TB90 diesels |
| Power, h. p. | 10800 |
| Max speed, kts | 34 |
| Fuel, t | diesel oil 15 |
| Endurance, nm(kts) | 1000(20) |
| Armament | 1 x 1 - 40/60 Mk 3, 1 x 3 - 20/76 Sea Vulcan, 2 x 1 - 20/70 Mk 10 |
| Electronic equipment | Raytheon 1645 radar |
| Complement | 31 |
Standard scale images
Stephen Otu 2015
Graphics
Stephen Otu 2011
Project history
Former South Korean 'Sea Dolphin' class patrol boat, refurbished before transfer.
Modernizations
None.
Naval service
No significant events.
