SAHENE large patrol craft (1976)

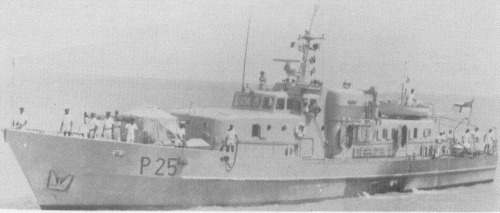

Sahene 1978
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Sahene | P24 | Rutholf, Mainz, West Germany | 1976 | stricken 1992 | |||
| Dela | P25 | Rutholf, Mainz, West Germany | 1976 | stricken 1992 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 160 |
| Length, m | 35.2 |
| Breadth, m | 6.50 |
| Draught, m | 1.80 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V538 TB90 diesels |
| Power, h. p. | 3000 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1000(30) |
| Armament | 1 x 1 - 40/70 Breda-Bofors 564 |
| Electronic equipment | radar |
| Complement | 32 |
Standard scale images
Sahene 1980
Graphics
Sahene 1978
Project history
Patrol craft built for fishery protection. The builders' bankruptcy prevented building of four more boats.
Modernizations
None.
Naval service
No significant events.
