BLIKA patrol craft (2012)

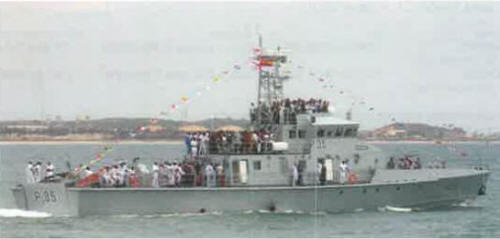

Garinga 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Blika | P34 | PTI, Dalian, China | 1.4.2011 | 19.2.2012 | in service (2019) | ||
| Garinga | P35 | PTI, Dalian, China | 1.4.2011 | 19.2.2012 | in service (2019) | ||
| Chemle | P36 | Qianjin, Qingdao, China | 2011 | 19.2.2012 | in service (2019) | ||
| Ehwor | P37 | Qianjin, Qingdao, China | 2011 | 19.2.2012 | in service (2019) |
Technical data
| Displacement standard, t | 200 |
|---|---|
| Displacement full, t | 230 |
| Length, m | 44.0 pp 46.8 oa |
| Breadth, m | 7.20 |
| Draught, m | 1.82 |
| No of shafts | 4 |
| Machinery | 4 MTU 16V2000 M90 diesels |
| Power, h. p. | 7200 |
| Max speed, kts | 26 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1200(15) |
| Armament | P34, 35: 2 x 2 - 14.5/93 P36, 37: 1 x 2 - 37/66 type 76A, 1 x 2 - 14.5/93 |
| Electronic equipment | JMA 5310, JMA 5106 radars |
| Complement | 30 |
Graphics
Garinga 2012
Project history
Design includes a stern ramp for launch and recovery of 2 6.5m RHIB.
Modernizations
None.
Naval service
No significant events.
