HOYERSWERDA medium landing ships (1976-1979)





Hoyerswerda 1978 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp. Fate
Hoyerswerda 611 331 Peenewerft, Wolgast 25.11.1974 1.7.1975 12.11.1976 stricken 1990, to Indonesia (Teluk Gilimanuk)
Hagenow 612/632 332 Peenewerft, Wolgast 7.3.1975 19.12.1975 1.12.1976 stricken 1990, to Indonesia (Teluk Celukan Bawang)
Frankfurt/Oder 613 333 Peenewerft, Wolgast 10.6.1975 2.1.1976 2.2.1977 stricken 1990, to Indonesia (Teluk Cendrawasih)
Eberswalde/Finow 614/634 334 Peenewerft, Wolgast 10.9.1975 15.7.1976 28.5.1977 stricken 1990, to Indonesia (Teluk Berau)
Lübben 631/632 335 Peenewerft, Wolgast 11.12.1975 2.10.1976 15.3.1978 stricken 1990, to Indonesia (Teluk Peleng)
Schwerin 632/612 336 Peenewerft, Wolgast 17.3.1976 18.1.1977 19.10.1977 stricken 1990, to Indonesia (Teluk Sibolga)
Neubrandenburg 633 337 Peenewerft, Wolgast 21.8.1976 6.4.1977 28.12.1977 stricken 1990, to Indonesia (Teluk Mando)
Cottbus 634/614 338 Peenewerft, Wolgast 22.11.1976 10.6.1977 26.5.1978 stricken 1990, to Indonesia (Teluk Hading)
Anklam 635 339 Peenewerft, Wolgast 21.2.1977 22.9.1977 14.7.1978 stricken 1990, to Indonesia (Teluk Parigi)
Schwedt 636 340 Peenewerft, Wolgast 5.5.1977 27.12.1977 7.9.1979 stricken 1990, to Indonesia (Teluk Lampung)
Eisenhüttenstadt 615 341 Peenewerft, Wolgast 18.8.1977 8.3.1978 4.1.1979 stricken 1990, to Indonesia (Teluk Jakarta)
Grimmen 616 342 Peenewerft, Wolgast 2.11.1977 30.5.1978 15.6.1979 stricken 1990, to Indonesia (Teluk Sangkulirang)


Technical data


Displacement standard, t

1744

Displacement full, t

1950

Length, m

90.7

Breadth, m

11.1

Draught, m

2.80 mean 3.47 max

No of shafts

2

Machinery

2 61B diesels

Power, h. p.

12000

Max speed, kts

18

Fuel, t

diesel oil

Endurance, nm(kts)

2450(14)

Armament

1 x 4 Fasta-4M SAM (16 9M32M), 2 x 2 - 57/50 AK-725, 2 x 2 - 30/71 AK-230, 2 x 40 -122 A-215 Grad-M RL

Military load

12 tanks or 600 t cargo, 100 troops

Electronic equipment

TSR-333, MR-302 Rubka, MR-105 Bars radars, 2x PK-16 decoy RL

Complement48


Standard scale images

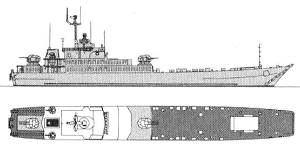

<i>Hoyerswerda </i>1980
Hoyerswerda 1980


Graphics

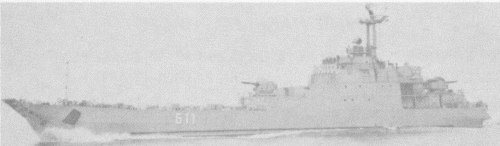

<i>Hoyerswerda </i>1978 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Hoyerswerda 1978 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Project 108, largest ships in the Volksmarine. Fitted with a bow ramp but had no bow doors and no stern door or ramp.

Modernizations

None

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
