TROLL torpedo boat (1910 / 1940)
Garm
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Troll (ex-Troll) | 104 | Marinens Hovedverft, Horten, Norway | 1908 | 7.7.1910 | 3.1912 // 5.1940 | hulk 1941 |
Technical data
| Displacement normal, t | 468 |
|---|---|
| Displacement full, t | 578 |
| Length, m | 69.2 |
| Breadth, m | 7.20 |
| Draught, m | 2.10 |
| No of shafts | 2 |
| Machinery | 2 VTE, 4 boilers |
| Power, h. p. | 7500 |
| Max speed, kts | 26.5 |
| Fuel, t | coal 105 |
| Endurance, nm(kts) | 2800(10) |
| Armament | 6 x 1 - 76/40 EOC 12pdr 12cwt QF, 3 x 1 - 450 TT |
| Complement | 76 |
Standard scale images

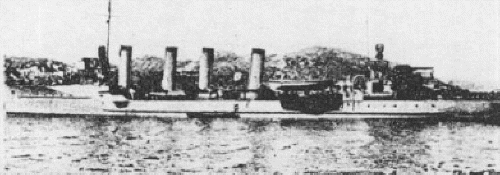

Troll 1940
Graphics
Garm
Project history
ex-Norwegian destroyer captured 4.5.1940 at Florø.
Modernizations
None
Naval service
Troll was returned to Norway after war.
