UC80 (UC III) coastal submarine minelayers (1918)





UC94 1919

Ships


Name No Yard No Builder Laid down Launched Comp Fate
UC80   49 KW Danzig 1917 --- --- BU on the stocks 1919
UC81   50 KW Danzig 1917 --- --- BU on the stocks 1919
UC82   51 KW Danzig 1917 --- --- BU on the stocks 1919
UC83   52 KW Danzig 1917 --- --- BU on the stocks 1919
UC84   53 KW Danzig 1917 --- --- BU on the stocks 1919
UC85   54 KW Danzig 1917 --- --- BU on the stocks 1919
UC86   55 KW Danzig 1917 --- --- BU on the stocks 1919
UC87   320 Weser, Bremen 1917 1918 --- BU incomplete 1919
UC88   321 Weser, Bremen 1917 1918 --- BU incomplete 1919
UC89   322 Weser, Bremen 1917 1918 --- BU incomplete 1919
UC90   324 Blohm & Voss, Hamburg 1917 19.1.1918 7.1918 interned 13.11.1918, to Japan 12.1918 (○4潜水艦 [O4])
UC91   325 Blohm & Voss, Hamburg 1917 19.1.1918 7.1918 lost on transfer 10.2.1919
UC92   326 Blohm & Voss, Hamburg 1917 19.1.1918 8.1918 to United Kingdom 11.1918
UC93   327 Blohm & Voss, Hamburg 1917 19.2.1918 8.1918 to Italy 11.1918
UC94   328 Blohm & Voss, Hamburg 1917 19.2.1918 8.1918 to Italy 11.1918
UC95   329 Blohm & Voss, Hamburg 1917 19.2.1918 9.1918 to United Kingdom 11.1918
UC96   330 Blohm & Voss, Hamburg 1917 17.3.1918 9.1918 to United Kingdom 11.1918
UC97   331 Blohm & Voss, Hamburg 1917 17.3.1918 9.1918 to USA 11.1918
UC98   332 Blohm & Voss, Hamburg 1917 17.3.1918 9.1918 to Italy 11.1918
UC99   333 Blohm & Voss, Hamburg 1917 17.3.1918 9.1918 to Japan 11.1918 (○5潜水艦 [O5])
UC100   334 Blohm & Voss, Hamburg 1917 14.4.1918 10.1918 to France 11.1918
UC101   335 Blohm & Voss, Hamburg 1917 14.4.1918 10.1918 to United Kingdom 11.1918
UC102   336 Blohm & Voss, Hamburg 1917 17.4.1918 10.1918 to United Kingdom 11.1918
UC103   337 Blohm & Voss, Hamburg 1917 14.4.1918 10.1918 to France 11.1918
UC104   338 Blohm & Voss, Hamburg 1917 25.5.1918 10.1918 to France 11.1918
UC105   339 Blohm & Voss, Hamburg 1917 25.5.1918 10.1918 to United Kingdom 11.1918
UC106   340 Blohm & Voss, Hamburg 1917 25.5.1918 3.1919 // --- completed for United Kingdom
UC107   341 Blohm & Voss, Hamburg 1917 2.6.1918 3.1919 // --- completed for France
UC108   342 Blohm & Voss, Hamburg 1917 2.6.1918 3.1919 // --- completed for United Kingdom
UC109   343 Blohm & Voss, Hamburg 1917 2.6.1918 4.1919 // --- completed for United Kingdom
UC110   344 Blohm & Voss, Hamburg 1917 6.7.1918 3.1919 // --- completed for United Kingdom
UC111   345 Blohm & Voss, Hamburg 1917 6.7.1918 3.1919 // --- completed for United Kingdom
UC112   346 Blohm & Voss, Hamburg 1917 6.7.1918 3.1919 // --- completed for United Kingdom
UC113   347 Blohm & Voss, Hamburg 1917 6.7.1918 3.1919 // --- completed for United Kingdom
UC114   348 Blohm & Voss, Hamburg 1917 11.8.1918 3.1919 // --- completed for United Kingdom
UC115   349 Blohm & Voss, Hamburg 1917 11.8.1918 --- BU incomplete
UC116   350 Blohm & Voss, Hamburg 1917 11.8.1918 --- BU incomplete
UC117   351 Blohm & Voss, Hamburg 1917 11.8.1918 --- BU incomplete
UC118   352 Blohm & Voss, Hamburg 1917 11.8.1918 --- BU incomplete
UC119   365 Blohm & Voss, Hamburg 1918 1918 --- BU incomplete 1919
UC120   366 Blohm & Voss, Hamburg 1918 1918 --- BU incomplete 1919
UC121   367 Blohm & Voss, Hamburg 1918 1918 --- BU incomplete 1919
UC122   368 Blohm & Voss, Hamburg 1918 1.10.1918 --- BU incomplete 1919
UC123   369 Blohm & Voss, Hamburg 1918 1.10.1918 --- BU incomplete 1919
UC124   370 Blohm & Voss, Hamburg 1918 1.10.1918 --- BU incomplete 1919
UC125   371 Blohm & Voss, Hamburg 1918 8.12.1918 --- BU incomplete
UC126   372 Blohm & Voss, Hamburg 1918 8.12.1918 --- BU incomplete
UC127   373 Blohm & Voss, Hamburg 1918 8.12.1918 --- BU incomplete
UC128   374 Blohm & Voss, Hamburg 1918 8.12.1918 --- BU incomplete
UC129   375 Blohm & Voss, Hamburg 1918 --- --- BU on the stocks
UC130   376 Blohm & Voss, Hamburg 1918 --- --- BU on the stocks
UC131   377 Blohm & Voss, Hamburg 1918 --- --- BU on the stocks
UC132   378 Blohm & Voss, Hamburg 1918 --- --- BU on the stocks
UC133   379 Blohm & Voss, Hamburg 1918 --- --- BU on the stocks
UC134   380 Blohm & Voss, Hamburg 1918 --- --- BU on the stocks
UC135   381 Blohm & Voss, Hamburg 1918 --- --- BU on the stocks
UC136   382 Blohm & Voss, Hamburg 1918 --- --- BU on the stocks
UC137   383 Blohm & Voss, Hamburg 1918 --- --- BU on the stocks
UC138   384 Blohm & Voss, Hamburg 1918 --- --- BU on the stocks


Technical data


Displacement standard, t


Displacement normal, t

UC80 - 86: 474 / 560

UC87 - 89: 480 / 566

UC90 - 118: 491 / 571

UC119 - 138: 511 / 582
Length, m

UC80 - 89: 56.1

UC90 - 118: 56.5

UC119 - 138: 57.1
Breadth, m

5.54
Draught, m

UC80 - 86: 3.76

UC87 - 89: 3.66

UC90 - 138: 3.77
No of shafts

2
Machinery

UC80 - 86: 2 Benz diesels / 2 SSW electric motors

UC87 - 89: 2 Körting diesels / 2 SSW electric motors

UC90 - 138: 2 MAN diesels / 2 SSW electric motors
Power, h. p.

UC80 - 86, 90 - 138: 600 / 770

UC87 - 89: 580 / 770
Max speed, kts

11.5 / 6.6
Fuel, t

UC80 - 86: diesel oil 64

UC87 - 138: diesel oil 67
Endurance, nm(kts)

UC90 - 138: 9850(7) / 40(4.5)
Armament

1 x 1 - 88/27 TK L/30 C/08 or 1 x 1 - 105/42 Utof L/45 C/16, 3 - 500 TT (2 bow, 1 stern, 7), 14 mines
Complement

32
Diving depth operational, m

75


Standard scale images


<i>UC80 </i>1918
UC80 1918


Graphics

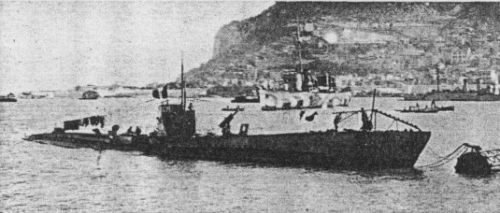

<i>UC94 </i>1919
UC94 1919


Project history

These UC III type minelayers were a considerable improvement on their predecessors, and had a diving depth of 75m. Two TT were sited amidships but were forward-firing. War orders S (UC80-118), V (UC119-152) and AC (UC153 and on). UC139-152 (KW Danzig) and UC153-192 were cancelled before were laid down.

Modernizations

None.

Naval service

UC90 was interned at Carlskrona (Sweden) 13.11.1918 and later transferred to Japan. UC91 sank in Baltic Sea after collision with s/s Alexandre Woermann 5.9.1918, salvaged next day, repaired and lost en route to transfer 10.2.1919 in the North Sea.
