HOLNIS inshore minesweeper (1966)

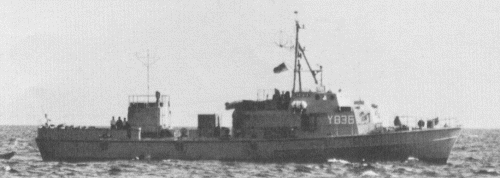

Holnis 1978

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Holnis M2651   Abeking & Rasmussen, Lemweder   20.5.1965 3.1966 auxiliary 1970


Technical data


Displacement standard, t

150

Displacement full, t181
Length, m

34.5 wl 41.7 oa

Breadth, m

7.40

Draught, m

1.70

No of shafts2
Machinery

2 Mercedes-Benz MB820Db diesels

Power, h. p.

2000

Max speed, kts

16.5

Fuel, t

diesel oil 15

Endurance, nm(kts)
Armament

1 x 1 - 20/90 S-20, mechanical, acoustic and magnetic minesweeping gear

Electronic equipmentTRS-N radar
Complement25


Standard scale images


<i>Holnis </i>1970
Holnis 1970


Graphics


<i>Holnis </i>1978
Holnis 1978


Project history

Prototype of planned class of type 390 riverine minesweepers. Project was later cancelled.

Modernizations

None.

Naval service

No significant events.
