SEEKUH 2 minesweeping craft (1966)
1977
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Seekuh 2 | Ottenser Eisenwerkr, Hamburg | 24.3.1966 | 1966 | late 1980s | |||
| Seekuh 3 | Ottenser Eisenwerkr, Hamburg | 24.3.1966 | 1966 | late 1980s |
Technical data
| Displacement standard, t | 104 |
|---|---|
| Displacement full, t | 181 |
| Length, m | 27.0 |
| Breadth, m | 3.53 |
| Draught, m | 2.30 hull 3.01 max |
| No of shafts | 1 Schöttel propeller / rudder |
| Machinery | 2 MWM 8-cyl diesel-generators, 1 electric motor |
| Power, h. p. | 700 |
| Max speed, kts | |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | magnetic minesweeping solenoid |
| Complement | 0 / 3 |
Standard scale images

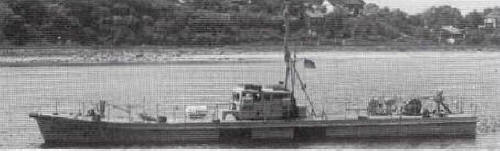

Seekuh 2 1980
Graphics
1977
Project history
Prototype drone of Troika system, involved in extraordinarily protracted trial period.
Modernizations
None.
Naval service
No significant events.
