SEEHUND 1 minesweeping craft (1980-1982)

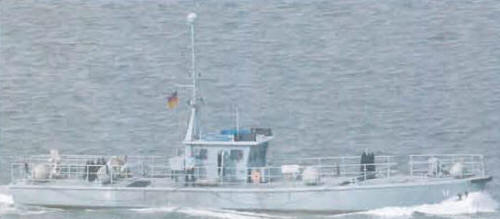

Seehund 17 2008

Ships


Names Builders Commissioned Losses Transfers Discarding

Seehund 1 - 18

MAK, Kiel: Seehund 1-18

1980: Seehund 1-3

1981: Seehund 4-12

1982: Seehund 13-18

none

none

2015: Seehund 2, 11-13, 15, 17

in service (2019): Seehund 1, 3-10, 14, 16, 18



Technical data


Displacement standard, t91
Displacement full, t99
Length, m

26.9

Breadth, m

4.60

Draught, m

1.40

No of shafts

1 Schöttel propeller / rudder

Machinery

1 MWM TRHS518A diesel

Power, h. p.

445

Max speed, kts10
Fuel, t

diesel oil

Endurance, nm(kts)520(9)
Armament

magnetic minesweeping solenoid, 2x SDG-21 mechanical minesweeping gear

Complement

0 / 3



Standard scale images


<i>Seehund 1 </i>1990
Seehund 1 1990


Graphics


<i>Seehund 17 </i>2008
Seehund 17 2008


Project history

Ordered in 1977 to operate three-apiece with the Type 351 control ships. Beginning in 1999, were converted to work with the Type 352 conversion control ships. Essentiallythey are remote-controlled, self-propelled magnetic minesweeping solenoids with all machinery highly shock-protected. Also able to stream two sets Type SDG-21 Oropesa mechanical minesweeping gear.

Modernizations

None.

Naval service

No significant events.
