UZ1 ASW boats (1917 - 1919)





UZ2

Ships


Names Builders Commissioned Losses Transfers Discarding

UZ1 - UZ8

UZ9, 1939- H108

UZ10

UZ11

UZ12, 8.1940- HS01

UZ13, 4.1940- H105, later DWo61, later Vs51

UZ14, 1940- DWo41, later Vs141, later Vs103

UZ15 - UZ19

UZ20, 1939- H1

UZ21, 1940- DWo..., later Vs1014

UZ22, 5.1940- H302, 11.1943- JK21

Lürssen, Aumund-Vegesack: UZ1 - 4

H. Heidtmann, Hamburg: UZ5 - 8

Max Oertz, Hamburg: UZ9, 10

Abeking & Rasmussen, Lemwerder: UZ11 - 13

Naglo-Werft, Zeuthen: UZ14 - 17

Roland-Werft Vertens, Hemelingen: UZ18 - 20

Waap, Kiel-Heikendorf: UZ21, 22

1917: UZ1 - 22

1939: H108 (ex-UZ9) (2nd time), H1 (ex-UZ20) (2nd time)

4-8/1940: HS01 (ex-UZ12) (2nd time), H105 (ex-UZ13) (2nd time), DWo41 (ex-UZ14) (2nd time), DWo... (ex-UZ21) (2nd time), H302 (ex-UZ22) (2nd time)

Vs1014 (18.3.1945)

none

1920: UZ1 - 14, 16 - 20, 22

1921: UZ15

1922: UZ21

surrendered 5.1945: H108? (2nd time), HS01? (2nd time), Vs51 (2nd time), Vs103 (2nd time), H1 (2nd time), JK21 (2nd time)



Technical data


Displacement standard, t40 - 44
Displacement full, t48 - 53
Length, m

UZ1 - 10, 12, 13: 26.0

UZ11: 27.2

UZ14 - 17: 27.5

UZ18 - 22: 27.0

Breadth, m

UZ1 - 4, 12, 13, 18 - 20: 4.00

UZ5 - 8: 4.05

UZ9, 10: 4.18

UZ11: 3.90

UZ14 - 17: 4.10

UZ21, 22: 4.30

Draught, m1.00 - 1.47
No of shafts

UZ1 - 10, 12, 20 - 22: 2

UZ11, 13 - 19: 3

Machinery

UZ1 - 10, 12, 20 - 22: 2 Benz petrol engines

UZ11, 13 - 19: 3 Deutz or Daimler petrol engines

Power, h. p.

UZ1 - 10, 21, 22: 500

UZ11, 14 - 20: 420

UZ12, 13: 640

Max speed, kts

UZ1 - 8, 12 - 22: 14.7 - 15

UZ9, 10: 16.4

UZ11: 14

Fuel, t

petrol 8.6

Endurance, nm(kts)1100(14)
Armament

UZ1 - 11, 14, 15, 18 - 20, 22: 1 x 1 - 52/51 SK L/55, DC, mechanical minesweeping gear

UZZ12, 13, 16, 17: 1 x 1 - 52/51 SK L/55, mechanical minesweeping gear

UZ21: 1 x 1 - 52/51

Complement

13 - 14



Graphics

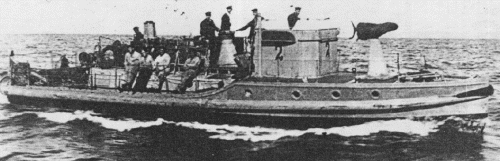

<i>UZ2</i>
UZ2


Project history

Submarine chasers. Many boats could be used as minesweepers. Wooden round-bilge hulls.

Modernizations

None.

Naval service

Many boats were repurchased by navy in WWII. They were used as patrol boats in coast guard flotillas.
