UJ6077 submarine chasers (1933 / 1944)

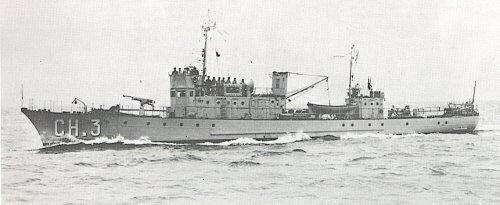

CH3
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| UJ6077 (ex-Ch4) | A C de Bretagne, Nantes, France | 1933 | 1934 | 1934 // 1944 | sunk 5.7.1944 | ||
| UJ6085 (ex-Ch1) | A C de Bretagne, Nantes, France | 1932 | 1933 | 1934 // 4.1944 | sunk 6.8.1944 |
Technical data
| Displacement standard, t | 148 |
|---|---|
| Displacement full, t | 180 |
| Length, m | 48.1 |
| Breadth, m | 5.50 |
| Draught, m | 1.90 |
| No of shafts | 2 |
| Machinery | UJ6077: 2 Sulzer diesels UJ6085: 2 MAN diesels |
| Power, h. p. | UJ6077: 2695 UJ6085: 2400 |
| Max speed, kts | UJ6077: 23.6 UJ6085: 20 |
| Fuel, t | diesel oil |
| Armament | 1 x 1 - 75/50 M1927, 2 x 1 - 13/76, 4 DCT, 1 DCR |
| Electronic equipment | hudrophone |
| Complement | 33 |
Standard scale images
Ch4 1940
Graphics
CH3
Project history
ex-French submarine chasers, scuttled by own crews in Toulon in November 1942, salvaged in January, 1944 and repaired by Germans.
Modernizations
None.
Naval service
UJ6085 was sunk by Allied aircraft 6.8.1944 at Toulon. UJ6077 was sunk by Allied destroyer and aircraft 17.8.1944 off Cape Croisette.
