ROSTOCK frigates (1978 - 1985 / 1990)
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Rostock (ex-Nerpa) | F224 | 202 | Gorkiy Yd, Zelenodolsk, USSR | 22.10.1974 | 4.6.1977 | 31.12.1977 // 2.10.1990 | stricken 12.1991 |
| Halle (ex-SKR-149) | F225 | 206 | Gorkiy Yd, Zelenodolsk, USSR | 8.4.1983 | 30.6.1984 | 25.6.1985 // 2.10.1990 | stricken 12.1991 |
Technical data
| Displacement standard, t | 1440 |
|---|---|
| Displacement normal, t | 1660 |
| Length, m | 96.5 |
| Breadth, m | 12.6 |
| Draught, m | 3.20 hull 5.57 max |
| No of shafts | 3 |
| Machinery | CODAG: 1 M-8G gas turbine (central shaft) + 2 68B diesels (outer shafts) |
| Power, h. p. | 20000 + 16000 = 36000 |
| Max speed, kts | 29.7 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 4500 (14) |
| Armament | 1 x 2 Osa-M SAM (20 9M33), 2 x 2 - 76/59 AK-726, 2 x 2 - 30/71 AK-230, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR (12), 14 mines |
| Electronic equipment | MR-320 Topaz-2V, Fut-N, 4R-33, MR-105 Turel', MR-104 Rys', Don radars, MG-311 Vychegda sonar, Bizan'-4B ECM suite |
| Complement | 108 |

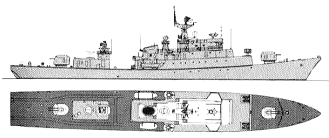

Standard scale images
Rostock 1990
Project history
Former guard ships of Volksmarine. Project 1159.
Modernizations
None.
Naval service
No significant events.
