Z1 destroyers (1942 - 1943 / 1958 - 1960)





Zerstörer 5 1980

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Z1 (ex-Anthony) D170   Bath Iron Wks, USA 8.1942 20.12.1942 2/1943 // 17.1.1958 stricken 3.1972
Z2 (ex-Ringgold) D171   Federal, Kearny, USA 6/1942 11.11.1942 12/1942 // 14.7.1959 to Greece 9.1981 (Κίμων [Kimon])
Z3 (ex-Wadsworth) D172   Bath Iron Wks, USA 8/1942 10.1.1943 3/1943 // 6.10.1959 to Greece 10.1980 (Νέαρχος [Nearkhos])
Z4 (ex-Claxton) D178   Consolidated, Orange, USA 7/1941 1.4.1942 12/1942 // 15.12.1959 to Greece 2.1981 (spare parts)
Z5 (ex-Dyson) D179   Consolidated, Orange, USA 7/1941 15.4.1942 12/1942 // 17.2.1960 to Greece 2.1982 (spare parts)
Z6 (ex-Charles Ausburne) D180   Consolidated, Orange, USA 5/1941 6.3.1942 11/1942 // 12.4.1960 stricken 10.1967


Technical data


Displacement standard, t

2100

Displacement full, t

3120

Length, m

112.5 wl 114.7 oa

Breadth, m

12.1

Draught, m

5.50 full load

No of shafts

2

Machinery

2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers

Power, h. p.

60000

Max speed, kts

32

Fuel, t

oil 540

Endurance, nm(kts)3450(15)
Armament

4 x 1 - 127/38 Mk 30, 3 x 2 - 76/50 Mk 33, 1 x 5 - 533 TT, 2 - 533 TT, 2 x 24 - 178 Hedgehog Mk 15 ASWRL, 1 DCR, mines

Electronic equipment

SPS-6, SPS-10, Mk 25, 2x Mk 34, Mk 35 radars, SQS-29 sonar, WLR-1 ECM suite

Complement

244



Standard scale images

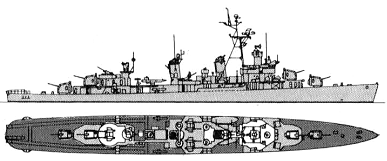

<i>Zerstörer 1 </i>1960
Zerstörer 1 1960


Graphics

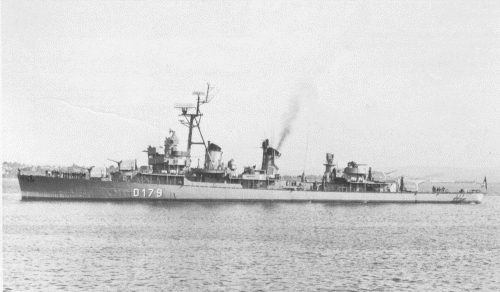

<i>Zerstörer 5 </i>1980
Zerstörer 5 1980


Project history

Former USN Fletcher class destroyers; all were modernized before transfer under MDAP, classified in Bundesmarine as type 119. They received new weapons, new electronics and additional German command systems.

Modernizations

1973-1975, all: - 1 x 5 - 533 TT

1974, Zerstörer 4: - 1 x 2 - 76/50 (aft); + 1 x 1 - 76/62 OTO-Melara Compact (for trials)

1975, Zerstörer 4: - 1 x 1 - 76/62

Naval service

No significant events.
