V116 destroyers (1918)
V116 1918
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| V116 | 456 | Vulcan, Stettin | 1916 | 2.3.1918 | 7.1918 | to Italy 5.1920 (Premuda) | |
| V117 | 457 | Vulcan, Stettin | 1917 | 4.5.1918 | --- | sold incomplete 11.1919 | |
| V118 | 458 | Vulcan, Stettin | 1917 | 6.7.1918 | --- | sold incomplete 11.1919 |
Technical data
| Displacement normal, t | 2060 |
|---|---|
| Displacement full, t | 2360 |
| Length, m | 107.5 oa 106.0 wl |
| Breadth, m | 10.4 |
| Draught, m | 4.52 |
| No of shafts | 2 |
| Machinery | 2 AEG-Vulcan steam turbines, 4 Marine boilers |
| Power, h. p. | 45000 |
| Max speed, kts | 34.5 |
| Fuel, t | oil 660 |
| Endurance, nm(kts) | 2500(20) |
| Armament | 4 x 1 - 149/42 TK L/45 C/16, 2 x 2 - 600 TT (8), 40 mines |
| Complement | 176 - 188 |
Standard scale images

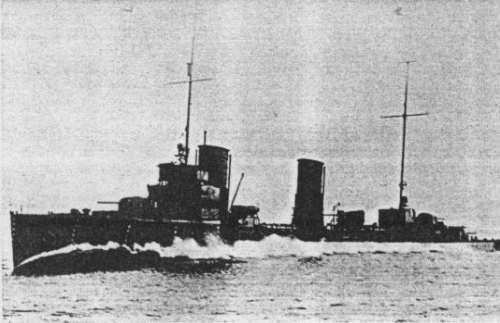

V116 1918
Graphics
V116 1918
Project history
These large destroyers were virtually sister-ships of the S113 group, and were in the last stages of completion at the end of the war.
Modernizations
None.
Naval service
Only V116 became operational.
