S131 large torpedo boats (1917 - 1918)

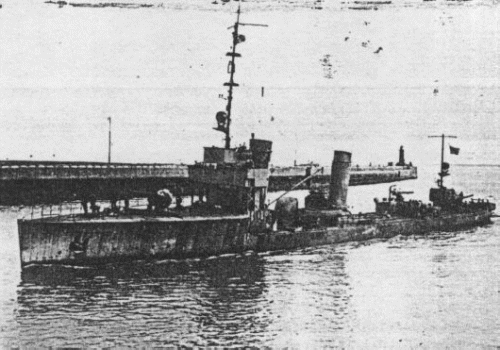

S134 1918

Ships


Name No Yard No Builder Laid down Launched Comp Fate
S131   937 Schichau, Elbing 1916 3.3.1917 8.1917 interned 11.1918, scuttled 24.6.1919
S132   938 Schichau, Elbing 1916 19.5.1917 10.1917 interned 11.1918, beached 21.6.1919, to USA 1920
S133   1006 Schichau, Elbing 1917 1.9.1917 2.1918 discarded 11.1919, to France 7.1920 (Chastang)
S134   1007 Schichau, Elbing 1917 25.8.1917 1.1918 discarded 11.1919, to France 6.1920 (Vesco)
S135   1008 Schichau, Elbing 1917 27.10.1917 3.1918 discarded 11.1919, to France 7.1920 (Mazaré)
S136   1009 Schichau, Elbing 1917 1.12.1917 4.1918 interned 11.1918, scuttled 21.6.1919
S137   1010 Schichau, Elbing 1917 9.3.1918 6.1918 interned 11.1918, beached 21.6.1919, to United Kingdom
S138   1011 Schichau, Elbing 1917 22.4.1918 7.1918 interned 11.1918, scuttled 21.6.1919
S139   1012 Schichau, Elbing 1917 24.11.1917 4.1918 discarded 11.1919, to France 7.1920 (Deligny)


Technical data


Displacement normal, t

919

Displacement full, t

1170

Length, m

83.1 oa 82.5 wl

Breadth, m

8.32

Draught, m

3.90

No of shafts

2

Machinery

2 Schichau steam turbines, 3 Marine boilers

Power, h. p.

24000

Max speed, kts

32

Fuel, t

oil 300

Endurance, nm(kts)

2450(17)

Armament

3 x 1 - 105/42 Utof L/45 C/16, 2 x 2 - 500 TT, 2 x 1 - 500 TT (8), 24 mines

Complement

105



Standard scale images


<i>S131</i> 1917
S131 1917


Graphics


<i>S134</i> 1918
S134 1918


Project history

S131 - S139 were the second group of the 1916 mobilisation type, having virtually the same appearance as the V125-V130 group.

Modernizations

None.

Naval service

No significant events.
