G96 large torpedo boat (1916)

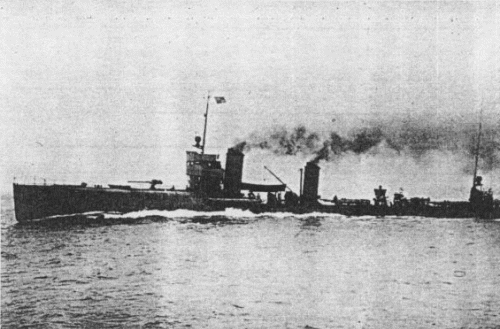

G96 1916
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| G96 | 232 | Germaniawerft, Kiel | 1915 | 16.9.1916 | 12.1916 | sunk 26.6.1917 |
Technical data
| Displacement normal, t | 990 |
|---|---|
| Displacement full, t | 1147 |
| Length, m | 84.5 oa 82.3 wl |
| Breadth, m | 8.36 |
| Draught, m | 3.50 |
| No of shafts | 2 |
| Machinery | 2 sets Germania geared steam turbines / 1 set cruising geared steam turbines in one shaft, 3 Marine boilers |
| Power, h. p. | 24000 |
| Max speed, kts | 32 |
| Fuel, t | oil 326 |
| Endurance, nm(kts) | 2040(17) |
| Armament | 3 x 1 - 105/42 Utof L/45 C/16, 2 x 2 - 500 TT, 2 x 1 - 500 TT (8), 40 mines |
| Complement | 105 |
Standard scale images
very similar G85 1918
Graphics
G96 1916
Project history
G96, belonging to the 1916 mobilisation type, was an enlarged version of the G85 group, the longer forecastle giving better seaworthiness.
Modernizations
None.
Naval service
G86 was lost on a mine 26.6.1917 off Flanders coast.
