G7 large torpedo boats (1912)

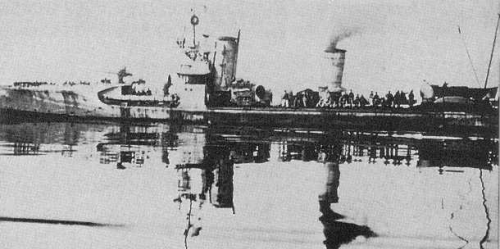

G8 1918

Ships


Name No Yard No Builder Laid down Launched Comp Fate
G7, 4.1939- T107   170 Germaniawerft, Kiel 1911 7.11.1911 4/1912 TS 1936, surrendered 5.1945, to USSR 12.1945 (Поражающий [Porazhayushchiy])
G8, 4.1939- T108   171 Germaniawerft, Kiel 1911 21.12.1911 8/1912 TS 1936, surrendered 5.1945, to UK 1.1946, BU
G9   172 Germaniawerft, Kiel 1911 31.1.1912 9.1912 sunk 3.5.1918
G10, 4.1939- T110   173 Germaniawerft, Kiel 1911 15.3.1912 8/1912 TS 1936, scuttled 5.5.1945
G11, 4.1939- T111   174 Germaniawerft, Kiel 1911 23.4.1912 8/1912 TS 1936, sunk 3.4.1945
G12   175 Germaniawerft, Kiel 1911 15.7.1912 10.1912 collision 8.9.1915


Technical data


Displacement normal, t

573

Displacement full, t

719

Length, m

71.0 wl 71.5 oa

Breadth, m

7.56

Draught, m

3.01

No of shafts

2

Machinery

2 Germania steam turbines, 4 Marine boilers

Power, h. p.

16000

Max speed, kts

32

Fuel, t

coal 110 + oil 80

Endurance, nm(kts)1150(17)
Armament

2 x 1 - 88/27 SK L/30 C/08, 4 x 1 - 500 TT (5), 18 mines

Complement

74



Standard scale images


<i>G7</i> 1931
G7 1931
<i>T107</i> 1944
T107 1944


Graphics


<i>G8</i> 1918
G8 1918


Project history

The second group of the 1911 fiscal year destroyers was built by Germaniawerft, their boats being more stable than the Blohm & Voss design (the old torpedo-boats S7-57 of the 1885-90 series were in consequence renumbered T7-57, most of them then being used as fast minesweepers).

Modernizations

1916, all survived: - 2 x 1 - 88/27; + 2 x 1 - 88/42 TK L/45 C/14

1920 - 1921, all survived: - 2 x 1 - 88/42, 2 x 1 - 500 TT; + 2 x 1 - 105/42 SK C/06; boilers were replaced by 3 new ones, fuel stowage was 156 t of coal and 80 t of oil. Displacement was 660 / 775 t, maximal speed felt to 31.5 kts, endurance 1800(17)nm.

1928 - 1931, all survived: were reconstructed, displacement was 772 / 884 t, dimensions 75.7 wl 76.1 oa x 7.58 x 3.11 m, maximal speed was 30 kts, boilers were converted to oil firing, fuel stowage was 220 t oil, endurance 1900(17)nm.

1937, all survived: - 1 x 1 - 105/42, 1 x 1 - 500 TT; + 2 x 1 - 20/65 C/30, 1 x 2 - 500 TT

Naval service

G9 was mined in the North Sea 3.5.1918. G12 collided 8.9.1915 with V1 in the North Sea and sunk after explosion of torpedo.

T110 was sunk 5.5.1945 by British aircraft at Travemünde. T111 was lost 3.4.1945 during raid of American aircraft to Kiel.

T107 on reparations was transferred to the USSR as Porazhayushchiy.
