G192 large torpedo boats (1911)





G193 1911

Ships


Name No Yard No Builder Laid down Launched Comp Fate
G192, 2.1918- T192   151 Germaniawerft, Kiel 1910 5.11.1910 5.1911 to United Kingdom 4.1920
G193, 2.1918- T193   152 Germaniawerft, Kiel 1910 10.12.1910 6.1911 to United Kingdom 4.1920
G194   153 Germaniawerft, Kiel 1910 12.1.1911 8.1911 sunk 26.3.1916
G195, 2.1918- T195   154 Germaniawerft, Kiel 1910 12.4.1911 9.1911 to United Kingdom 4.1920
G196, 2.1918- T196   155 Germaniawerft, Kiel 1910 24.5.1911 10/1911 surrendered 5.1945, to USSR 12.1945 (Пронзительный [Pronzityel'nyy])
G197, 2.1918- T197   156 Germaniawerft, Kiel 1910 23.6.1911 11.1911 to United Kingdom 4.1920


Technical data


Displacement normal, t

660

Displacement full, t

810

Length, m

73.6 wl 74.0 oa

Breadth, m

7.90

Draught, m

3.02

No of shafts

2

Machinery

2 Germania steam turbines, 4 Marine boilers

Power, h. p.

18200

Max speed, kts

32

Fuel, t

coal 145 + oil 76

Endurance, nm(kts)1150(17)
Armament

2 x 1 - 88/27 TK L/30 C/08, 4 x 1 - 500 TT (5)

Complement

76



Standard scale images


<i>G192</i> 1912
G192 1912
<i>T196</i> 1939
T196 1939


Graphics

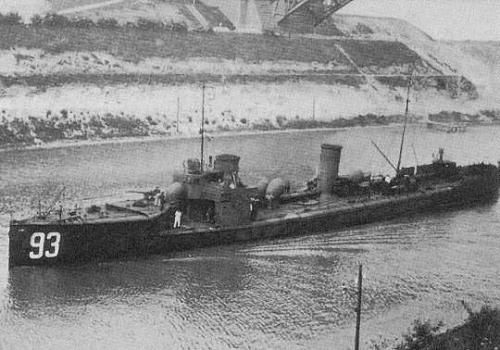

<i>G193</i> 1911
G193 1911


Project history

Belonged to the fiscal year 1910 and had the same design of the after end of the forecastle for their forward TTs.

Modernizations

1916 - 1917, all: - 2 x 1 - 88/27; + 2 x 1 - 88/42 TK L/45 C/14

1923, T196: - 2 x 1 - 88/42, 4 x 1 - 500 TT; + 2 x 1 - 105/42 SK C/06, 2 x 2 - 500 TT

1932, T196: + 2 x 1 - 20/65 C/30

1937, T196: - 2 x 2 - 500 TT

Naval service

G194 was rammed by British cruiser Cleopatra 26.3.1916 in the North Sea. T196 since 1937 was flagship of FdM (TTs were removed, additional accommodations were arranged); then TS. T196 on reparations was transferred to the USSR as Pronzitelny.
