KRISCHAN II seaplane tender (1935)
Gunther Plüschow
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Krischan II, 8.1936- Gunther Plüschow | K21 | 682 | Norderwerft Köser & Meyer, Hamburg | 17.1.1935 | 10.3.1935 | surrendered 9.1945, to Soviet Union 1.1946 (Прут [Prut]) |
Technical data
| Displacement standard, t | 375 |
|---|---|
| Displacement full, t | 700 |
| Length, m | 53.8 |
| Breadth, m | 8.30 |
| Draught, m | 2.65 |
| No of shafts | 2 |
| Machinery | 2 MAN diesels |
| Power, h. p. | 3200 |
| Max speed, kts | 19 |
| Fuel, t | diesel oil 50 |
| Endurance, nm(kts) | 4500(15) |
| Armament | 1 x 1 - 37/80 SK C/30, 2 seaplanes (He 60, Do 18) |
| Complement | 30 |
Standard scale images

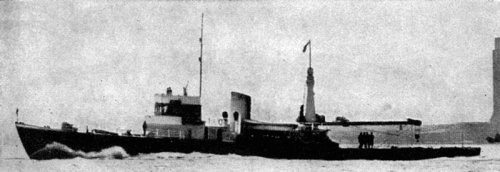

Gunther Plüschow 1942
Graphics
Gunther Plüschow
Project history
Small depot ship with a shipway-deck for 1 seaplane, arranged by 10t crane.
Modernizations
None.
Naval service
Gunter Plüschow was on reparations transferred to the USSR as Prut.
