NAVYPEDIA


F-85032 1997

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
i						1959-1960	to Tonga 1989
ii						1959-1960	stricken 8.1991
iii						1959-1960	stricken 8.1991
iv						1959-1960	stricken 8.1991
v						1959-1960	stricken 8.1991
vi						1959-1960	stricken 8.1991
vii						1959-1960	stricken 8.1991
viii						1959-1960	stricken 8.1991
ix						1959-1960	stricken 8.1991
x						1959-1960	stricken late 2000s
xi						1959-1960	stricken late 2000s
xii						1959-1960	stricken late 2000s
xiii						1959-1960	stricken late 2000s
xiv						1959-1960	stricken late 2000s
xv						1959-1960	stricken late 2000s
xvi						1959-1960	stricken late 2000s
xvii						1959-1960	stricken late 2000s
xviii						1959-1960	stricken late 2000s
xix						1959-1960	stricken late 2000s
xx						1959-1960	stricken late 2000s
xxi						1959-1960	stricken late 2000s
xxii						1959-1960	stricken late 2000s
xxiii						1959-1960	stricken late 2000s

Technical data

Displacement standard, t	89
Displacement full, t	200
Length, m	27.4
Breadth, m	7.20
Draught, m	1.20
No of shafts	2
Machinery	2 MWM RHS518A diesels
Power, h. p.	432
Max speed, kts	9
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	4 x 1 - 7.6/90
Military load	90 t cargo
Electronic equipment	radar
Complement	9

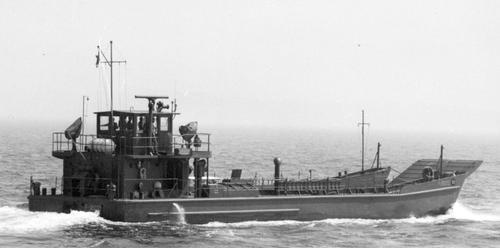

Graphics

Project history

Army. Have a bow ramp and shallow tank deck.

Modernizations

none.

Naval service

No significant events.
