BREDSTEDT patrol ship (1989)

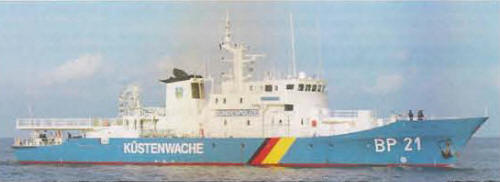

Bredstedt 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Bredstedt | BG21, 7.2005- BP21 | Elsflether Werft | 3.3.1988 | 18.12.1988 | 24.5.1989 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 673 |
| Length, m | 57.3 pp 65.4 oa |
| Breadth, m | 9.20 |
| Draught, m | 3.20 |
| No of shafts | 1 |
| Machinery | 1 MTU 29V1163 TB93 diesel / 2 diesel-generators, 1 electric motor |
| Power, h. p. | 10880 / 1500 |
| Max speed, kts | 25 / 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 7000(10) |
| Armament | 1 x 1 - 40/70 Bofors 315, helicopter deck |
| Electronic equipment | 2x Decca 2690 radars |
| Complement | 18 |
Standard scale images
Bredstedt 2010
Graphics
Bredstedt 2008
Project history
Border Guard (since 2005 Border Police). 673 grt. Helicopter platform aft. Has a stern ramp-launched Avon Searaider inspection/rescue launch, and a second RIB is carried to port amidships. Two firefighting water monitors are fitted.
Modernizations
1996: - 1 x 1 - 40/70
Naval service
No significant events.
