TIGER missile boats (1972 - 1975)

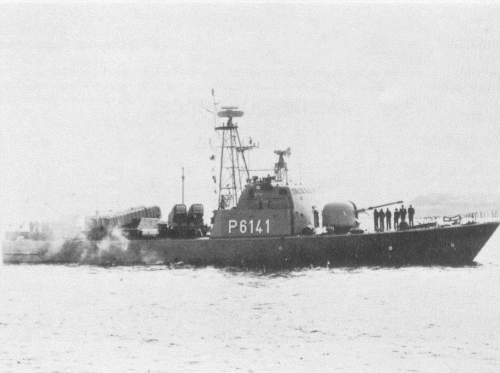

S41 1979

Ships


Name No Yard No Builder Laid down Launched Comp Fate
S41, 1982- Tiger P6141   CMN, Cherbourg, France 11.10.1971 27.9.1972 30.10.1972 stricken 9.1998, to Chile (Teniente Uribe)
S42, 1982- Iltis P6142   CMN, Cherbourg, France 2.2.1972 12.12.1972 8.1.1973 stricken 10.1992, to Greece (Υποπλοίαρχος Βότσης [Ipopliarchos Votsis])
S43, 1982- Luchs P6143   CMN, Cherbourg, France 23.3.1972 7.3.1973 9.4.1973 stricken 8.1998
S44, 1982- Marder P6144   CMN, Cherbourg, France 15.4.1972 5.5.1973 14.7.1973 stricken 5.1994, to Greece (Πλωταρχησ Βλαχάβας [Plotarchis Vlahavas])
S45, 1982- Leopard P6145   CMN, Cherbourg, France 12.9.1972 3.7.1973 21.8.1973 stricken 9.2000, to Greece (Πλωταρχησ Τουρνάς [Plotarchis Tournas])
S46, 1982- Fuchs P6146   Lürssen, Vegesack 10.3.1972 21.5.1973 17.10.1973 stricken 12.2002, to Egypt (6 أكتوبرl [6 Uctubar])
S47, 1982- Jaguar P6147   CMN, Cherbourg, France 29.11.1972 20.9.1973 13.11.1973 stricken 9.2000, to Greece (Πλωταρχησ Σακίπης [Plotarchis Sakipis])
S48, 1982- Löwe P6148   Lürssen, Vegesack 10.7.1972 10.9.1973 9.1.1974 stricken 12.2002, to Egypt (21 أكتوبرl [21 Uctubar])
S49, 1982- Wolf P6149   CMN, Cherbourg, France 23.1.1973 11.1.1974 4.3.1975 stricken 8.1997, to Chile (Guardiamarina Riquelme)
S50, 1982- Panther P6150   Lürssen, Vegesack 30.9.1972 10.12.1973 27.3.1974 stricken 9.2002
S51, 1982- Häher P6151   CMN, Cherbourg, France 5.4.1973 26.4.1974 12.6.1974 stricken 6.1994, to Greece (Πλωταρχησ Μαριδάκης [Plotarchis Maridakis])
S52, 1982- Storch P6152   Lürssen, Vegesack 12.3.1973 25.3.1974 17.7.1974 stricken 11.1992, to Greece (Αντιπλοίαρχος Πεζόπουλος [Antipliachos Pezopoulos])
S53, 1982- Pelikan P6153   CMN, Cherbourg, France 11.9.1973 4.7.1974 24.9.1974 stricken 6.1998
S54, 1982- Elster P6154   Lürssen, Vegesack 29.6.1973 8.7.1974 27.11.1974 stricken 8.1997, to Chile (Teniente Orella)
S55, 1982- Alk P6155   CMN, Cherbourg, France 9.4.1974 15.11.1974 7.1.1975 stricken 5.2002, to Egypt (23 يوليوl [23 Yuliu])
S56, 1982- Dommel P6156   Lürssen, Vegesack 13.12.1973 30.11.1974 12.2.1975 stricken 12.2002, to Egypt (18 يونيوl [18 Yuniu])
S57, 1982- Weihe P6157   CMN, Cherbourg, France 2.7.1974 13.2.1975 3.4.1975 stricken 12.2002, to Egypt (25 أبريلl [25 Abril])
S58, 1982- Pinguin P6158   Lürssen, Vegesack 11.3.1974 26.2.1975 22.5.1975 stricken 6.2002
S59, 1982- Reiher P6159   CMN, Cherbourg, France 8.11.1974 15.5.1975 24.6.1975 stricken 9.2002
S60, 1982- Kranich P6160   Lürssen, Vegesack 9.5.1974 26.5.1975 6.8.1975 stricken 9.1998, to Chile (Teniente Serrano)


Technical data


Displacement standard, t

234

Displacement full, t

264

Length, m

45.9 pp 47.0 oa

Breadth, m

7.10

Draught, m

2.66 full load

No of shafts

4

Machinery

4 MTU 16V538 TB90 (MD872) diesels

Power, h. p.

14000

Max speed, kts

35.8

Fuel, t

diesel oil 39

Endurance, nm(kts)1600(15)
Armament

2 x 2 MM38 Exocet SSM (4 MM38), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Breda-Bofors 564

Electronic equipment

3RM20, Triton, Pollux radars

Complement

30



Standard scale images


<i>Fuchs </i>1990
Fuchs 1990


Graphics


<i>S41 </i>1979
S41 1979


Project history

The steel-hulled Type 148 missile-firing attack craft were a modified French 'La Combattante II' type, which in turn was based on a Lürssen design. Orders placed on 18 December 1970, based on a German-French contract of 23 October 1970. These boats were to replace the Jaguar class (Type 140). Under the project management of the Direction Technique des Constructions Navales (DTCN) of the French Ministry of Defence, the main shipyard employed was Constructions Mécaniques de Normandie (CMN).

S 46, S 4S, S 50, S 52, S 54, S 56, S 58 and 5 60 were fitted out by Lürssen, the hulls having been brought from Cherbourg to Germany.

Modernizations

1980s, Storch; 1988-1992, all others: - Triton, Pollux radars; + Triton-G, Castor II radars, Piranha e/o system, Cutlass, Scorpion ECM suites, 2x Hot Dog/Silver Dog decoy RL

Naval service

No significant events.
