NAVYPEDIA

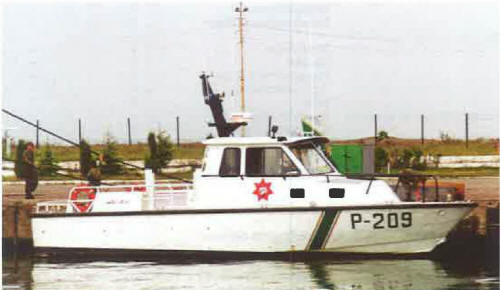

P209 2002

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
P208, later- P106, later- P002 P209, later- P001	SeaArk, Monticello, USA: P208, 209	1999: P208, 209	none	none	in service (2020): P001, 002

Technical data

Displacement standard, t
Displacement full, t	15
Length, m	12.2
Breadth, m	3.86
Draught, m	0.70
No of shafts	2
Machinery	2 Caterpillar 3208TA diesels
Power, h. p.	690
Max speed, kts	28
Fuel, t	diesel oil
Endurance, nm(kts)	400(22)
Armament	1 x 1 - 12.7/90
Electronic equipment	Raytheon radar
Complement	5

Graphics

Project history

SeaArk 'Dauntless' class.

Modernizations

None.

Naval service

No significant events.
