N'GOLO fast attack craft (gun) (1977-1981)
N'Golo 1978
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
GC04 N'Golo (i) GC04 N'Golo (ii) |
Intermarine, Sarzana, Italy: GC04 (i), 04 (ii) |
1977: GC04 (i) 1981: GC04 (ii) |
GC04 (i) (fire 13.3.1980) |
none |
1989: GC04 (ii) |
Technical data
| Displacement standard, t | 65 |
|---|---|
| Displacement full, t | 88 |
| Length, m | 27.3 |
| Breadth, m | 6.80 |
| Draught, m | 2.10 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V538 diesels |
| Power, h. p. | 7000 |
| Max speed, kts | 40 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 20/90 Mk 20 Rh202 |
| Electronic equipment | Decca RM916 radar |
| Complement | 16 |
Graphics

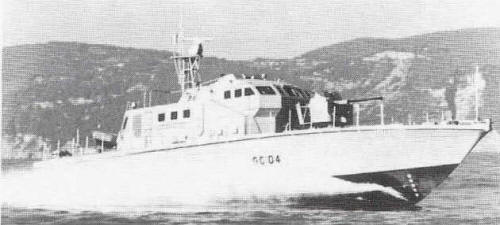

N'Golo 1978
Project history
GRP hull, at the time of completion the largest GRP hull of any high-speed craft in the world.
Modernizations
None.
Naval service
N'Golo was destroyed by fire 13.3.1980 but replaced by craft of the same name and number.
