FIGHTING SHIPS OF THE WORLD
GABON
COASTAL FORCES
CAPITAINE DE FRÉGATE AWORE PAUL patrol boats (2006)
Lieutenant de Vaisseau Mangoye Jean-Baptisté 2009
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P01 Capitaine de Frégate Awore Paul P02 Lieutenant de Vaisseau Mangoye Jean-Baptisté P03 Enseigne de Vaisseau Betseng Adrien P04 Enseigne de Vaisseau de 2° classe Mendene |
Rodman, Vigo, Spain: P01-04 |
2006: P01-04 |
none |
none |
in service (2019): P01-04 |
Technical data
| Displacement standard, t | 29 |
|---|---|
| Displacement full, t | 36 |
| Length, m | 20.5 |
| Breadth, m | 4.90 |
| Draught, m | 0.96 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar diesels |
| Power, h. p. | 1200 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 450(22) |
| Armament | 1 x 1 - 12.7/90 (provision for) |
| Electronic equipment | Furuno FR7062-4 radar |
| Complement | 11 |
Graphics

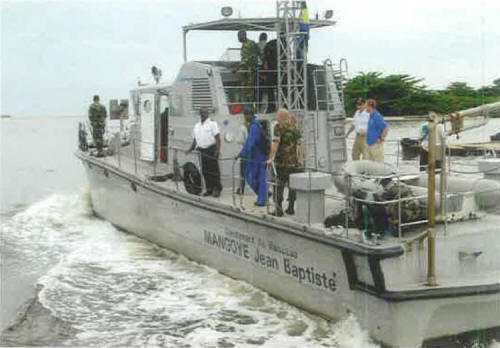

Lieutenant de Vaisseau Mangoye Jean-Baptisté 2009
Project history
Rodman 66 class. GRP hull.
Modernizations
None.
Naval service
No significant events.
