AMIRAL MOUCHEZ armed survey / patrol vessel (1937)

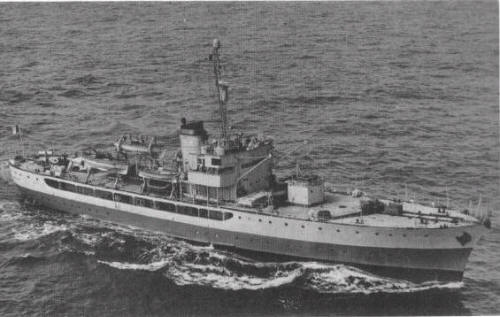

Amiral Mouchez after war
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Amiral Mouchez | 1950- P752 | Arsenal de Cherbourg | 1.1935 | 3.8.1936 | 1937 | FNFL 7.1940, BU 8.1965 |
Technical data
| Displacement standard, t | 781 |
|---|---|
| Displacement full, t | 970 |
| Length, m | 55.8 pp 62.0 oa |
| Breadth, m | 10.3 |
| Draught, m | 3.40 |
| No of shafts | 1 |
| Machinery | 1 Sulzer diesel |
| Power, h. p. | 800 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2500(10) |
| Armament | 2 x 1 - 100/45 M1932 |
| Complement | 81 |
Standard scale images
Amiral Mouchez 1945
Amiral Mouchez 1955
Graphics
Amiral Mouchez after war
Project history
Heavy armed survey vessel intended also for patrol service in wartime. After war she received patrol (P) designation.
Modernizations
1941 - 1943: + 4 x 1 - 20/70 Oerlikon Mk II/IV, 2 x 1 - 13.2/76, 4 DCT, 2 DCR (32), radar
Naval service
No significant events.
