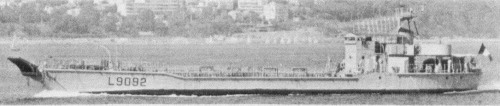

EDIC9092 1979

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp.	Fate
EDIC9091	L9091		SFCN, Villeneuve-La-Garenne // Arsenal de Cherbourg		7.1.1958	12.1958	stricken 11.1988
EDIC9092	L9092		SFCN, Villeneuve-La-Garenne // Arsenal de Cherbourg		2.12.1958	2.1959	stricken 11.1988
EDIC9093	L9093		SFCN, Villeneuve-La-Garenne // Arsenal de Cherbourg		17.4.1958	2.1959	stricken 5.1988
EDIC9094	L9094		SFCN, Villeneuve-La-Garenne // Arsenal de Cherbourg		24.7.1958	5.1959	stricken 10.1993
EDIC9095	L9095		DCAN, Cherbourg		11.4.1958	1.1959	to Senegal 1.1974 (Faleme)
EDIC9096	L9096		DCAN, Cherbourg		11.10.1958	4.1959	to Lebanon 11-12/1983 (صور [Sour]), stricken 11.1994
EDIC9081	L9081					1965	stricken 1977
EDIC9082	L9082					6.1965	stricken 1981, to Madagascar (Aina Vao Vao)
EDIC9083	L9083					2.1966	stricken 1986
EDIC9084	L9084					11.1965	repair craft BAME9084 1982
EDIC9070, 1997- Javeline	L9070		SFCN, Villeneuve-La-Garenne			30.3.1967	to Senegal 10.1995 (Faleme II) (formally 1.2000)
EDIC9071	L9071					11.1967	stricken 1977
EDIC9072	L9072					5.1969	stricken 1993
EDIC9073	L9073					5.1969	stricken 1986
EDIC9074	L9074					2.1970	stricken 1997

Technical data

Displacement standard, t	635
Displacement full, t	736
Length, m	59.0
Breadth, m	12.0
Draught, m	1.30
No of shafts	2
Machinery	2 SACM-MGO 175V12ASH diesels
Power, h. p.	1000
Max speed, kts	8
Fuel, t	diesel oil
Endurance, nm(kts)	1800(8)
Armament	some: 2 x 1 - 20/70 Mk 4, 2 x 1 - 12.7/90
Military load	5 LVTs or 11 trucks L9081 - 9084: repair equipment, cargo
Electronic equipment	Decca 1229 radar
Complement	17

Standard scale images

Graphics

Project history

EDIC type (Engins de Débarquement Infanterie Chars) LCTs (L9091-9096 and 9070-9074) and EDA (Engins de Débarquement Ateliers) repair and logistic craft for overseas service.

Modernizations

None.

Naval service

No significant events.
