L'ASTROLABE patrol ship (2017)
L'Astrolabe 2017
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| L'Astrolabe | P800 | Crist, Gdynia, Poland // Piriou, Concarneau | 16.12.2015 | 11.7.2017 | 11.9.2017 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 4000 |
| Length, m | 72.0 |
| Breadth, m | 16.0 |
| Draught, m | |
| No of shafts | 2 |
| Machinery | 4 Wärtsilä 20 diesels |
| Power, h. p. | |
| Max speed, kts | |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | helicopter deck |
| Military load | 1200 t cargo |
| Electronic equipment | 2x nav. radars |
| Complement | 60 + passengers |
Standard scale images

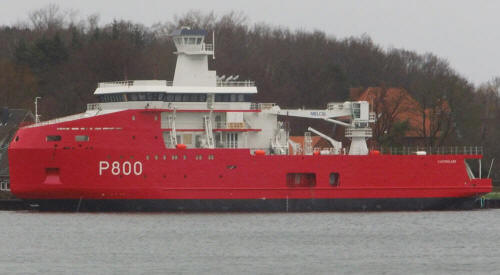

L'Astrolabe 2017
Graphics
L'Astrolabe 2017
Project history
Ordered in June 2015 to replace P681 Albatros as logistic vessel for Antarctic stations.
Modernizations
none
Naval service
No significant events.
