AMIRAL SÉNÈS destroyer (1919 / 1920)
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Amiral Sénès (ex-S113) | 983 | Schichau, Elbing, Germany | 1916 | 31.1.1918 | 8.1919 // 5.1920 | stricken 1936 |
Technical data
| Displacement normal, t | 2060 |
|---|---|
| Displacement full, t | 2415 |
| Length, m | 105.4 wl 106.0 oa |
| Breadth, m | 10.2 |
| Draught, m | 3.37 normal 4.84 deep load |
| No of shafts | 2 |
| Machinery | 2 Schichau steam turbines, 4 Marine boilers |
| Power, h. p. | 45000 |
| Max speed, kts | 36 |
| Fuel, t | oil 720 |
| Endurance, nm(kts) | 2500(20) |
| Armament | 4 x 1 - 149/42 TK L/45 C/16, 2 x 2 - 600 TT (8), 40 mines |
| Complement | 176 - 188 |
Standard scale images

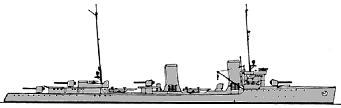

Amiral Sénès 1920
Project history
Ex-German large destroyer, lead ship of class. Transferred by reparations.
Modernizations
None.
Naval service
No significant events.
