SEUDRE patrol craft (2016-2017)
Seudre 2016
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Seudre | DF32 | SOCARENAM, St-Malo // Boulogne-sur-Mer | 7.2016 | in service (2019) | |||
| Levante | DF33 | SOCARENAM, St-Malo // Boulogne-sur-Mer | 2017 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | |
| Length, m | 32.4 |
| Breadth, m | 7.46 |
| Draught, m | 2.00 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar C32 diesels |
| Power, h. p. | 3265 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 720(18) |
| Armament | 2 x 1 - 7.5/90 |
| Electronic equipment | 2x Furuno radars, FLIR IR e/o detector |
| Complement | 10 + 2 passengers |
Graphics

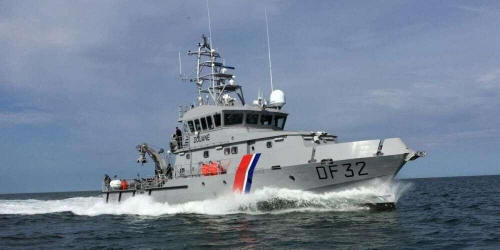

Seudre 2016
Project history
Customs craft. Aluminium construction.
Modernizations
None.
Naval service
No significant events.
