AVEL GWALARN patrol boats (1984-1988)
Suroît
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
DF41 Avel Gwalarn DF42 Suroît |
C N de l'Estérel, Cannes: DF41, 42 |
1984: DF41 1988: DF42 |
none |
none |
to Lebanon 1.2009: DF41 2016: DF42 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 67 |
| Length, m | 30.4 |
| Breadth, m | 5.80 |
| Draught, m | 1.83 |
| No of shafts | 2 |
| Machinery | 2 Poyaud UD 20 diesels |
| Power, h. p. | 2200 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1200(15) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 8 |
Graphics

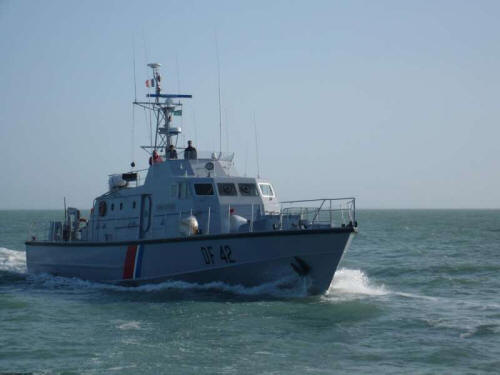

Suroît
Project history
Medium patrol boats. Custom.
Modernizations
1992, Avel Gwalarn: was re-engined with 2 Poyaud UD 23 diesels (2640hp)
Naval service
No significant events.
