STELLIS motor launches (1992-1993)
Stellis 2000
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P775 Stellis P776 Sténia |
DCN, Lorient: P775, 776 |
9/1992: P775 3/1993: P776 |
none |
none |
2.2003: P775 2016: P776 |
Technical data
| Displacement standard, t | 52 |
|---|---|
| Displacement full, t | 60 |
| Length, m | 24.9 |
| Breadth, m | 6.10 |
| Draught, m | 1.70 max |
| No of shafts | 2 + 1 waterjet |
| Machinery | 3 diesels |
| Power, h. p. | 2520 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 700(22) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | DRBN-32 radar |
| Complement | 2 + 2 passengers |
Graphics

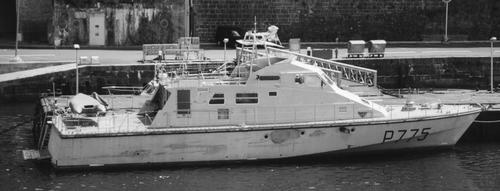

Stellis 2000
Project history
Small patrol boats, carry a RIB handled by hydraulical crane. Manned by Gendarmerie.
Modernizations
None.
Naval service
No significant events.
