T15 minelaying boats (1914/1918)
T21 Loimu
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
T15 (ex-M.1 (Теплоход №1 [Teplokhod No1])), 1936- Paukku T16 (ex-M.5 (Теплоход №5 [Teplokhod No5])), 1936- Lieska T21 (ex-M.4 (Теплоход №4 [Teplokhod No4])), 1936- Loimu |
Crichton, St. Petersburg, Russia: T15, 16, 21 |
6/1914 // 4-5/1918: T15, 16, 21 |
Paukku (14.11.1941), Lieska (4.11.1943) |
none |
1945: Loimu |
Technical data
| Displacement normal, t | 34 |
|---|---|
| Displacement full, t | 60 |
| Length, m | 20.7 |
| Breadth, m | 5.00 |
| Draught, m | 1.20 |
| No of shafts | 2 |
| Machinery | 2 Bolinder semi-diesels |
| Power, h. p. | 60 |
| Max speed, kts | 7.2 |
| Fuel, t | diesel oil 0.9 |
| Endurance, nm(kts) | 420(5) |
| Armament | 1 x 1 - 7.6/94, 30 mines |
| Complement | 8 |
Standard scale images

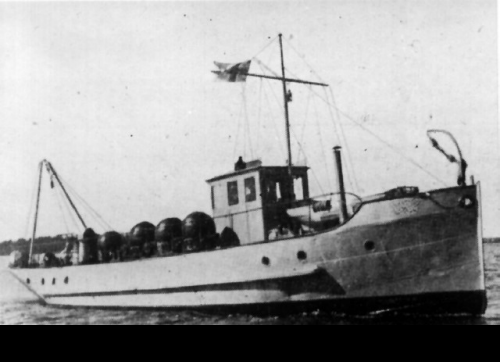

T15 1918
Graphics
T21 Loimu
Project history
Former Russian small minelayers. All in 1918 were captured by Finns: No1 and 4 13.5.1918 at Borgo; No5 6 21.4.1918 at Helsingfors.
Modernizations
1930s, some boats: - 1 x 1 - 7.6/94; + 1 x 1 - 20/60 Madsen.
Naval service
No significant events.
