PANSIO coastal minelayers / anti-pollution ships (1991-1992)

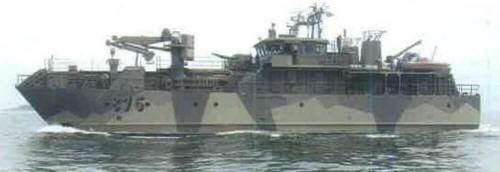

Pyhäranta 2012

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Pyhäranta 375, later- 475, 2000s- 875   Olkiluoto, Telakka     26.4.1992 in service (2019)
Pansio 576, 2000s- 876   Olkiluoto, Telakka     25.9.1991 in service (2019)
Porkkala 777   Olkiluoto, Telakka     29.10.1992 in service (2019)


Technical data


Displacement standard, t
Displacement full, t450
Length, m

39.2 pp 44.0 oa

Breadth, m

10.0

Draught, m

2.00

No of shafts

2

Machinery

2 MTU 12V183 TE62 diesels

Power, h. p.

1500

Max speed, kts

10

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 2 - 23/87 Sako, 1 x 1 - 12.7/79, 50 mines

Electronic equipmentRaytheon radar
Complement

12



Graphics


<i>Pyhäranta </i>2012
Pyhäranta 2012


Project history

Multirole vessels built as minelayers, pollution control ships and landing craft/cargo carriers to support coastal artillery facilities. Bow and stern ramps, vehicle deck accommodated two trucks with mine rails fitted.

Modernizations

None.

Naval service

No significant events.
