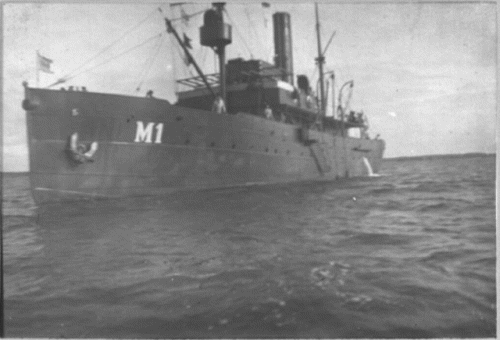

M1

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
M1 (ex-Воин [Voin]), 1936- Louhi			Kolomna S Yd, Russia	?	1916	1916 // 4.1918	sunk 12.1.1945

Technical data

Displacement normal, t	640
Displacement full, t	776
Length, m	50.0
Breadth, m	8.00
Draught, m	2.70
No of shafts	1
Machinery	1 VTE, 3 boilers
Power, h. p.	800
Max speed, kts	12
Fuel, t	coal 50
Endurance, nm(kts)
Armament	2 x 1 - 75/48 Canet, 150 mines
Complement	46

Standard scale images

Graphics

Project history

Former Russian minelayer Voin. At escape of Baltic fleet from Finland she was abandoned at Helsingfors where in 1918 was captured by Finns.

Modernizations

late 1930s: + 2 x 1 - 40/39 QF Mk II, 1 x 1 - 20/60 Madsen.

Naval service

Louhi was lost 12.1.1945 off Hanko on a mine (possibly, German).
