U701 (JEHU) landing craft (2014-2016)
U701 2014
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
U701-712 |
Marine Alutech, Teijo: U701-712 |
2014-2016: U701-712 |
none |
none |
in service (2019): U701-712 |
Technical data
| Displacement standard, t | 29 |
|---|---|
| Displacement full, t | |
| Length, m | 19.3 |
| Breadth, m | 4.40 |
| Draught, m | 1.00 |
| No of shafts | 2 waterjets |
| Machinery | 2 Scania diesels |
| Power, h. p. | 1800 |
| Max speed, kts | 40 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 12.7/79, 1 x 1 - 7.6/90 |
| Military load | 25 troops |
| Electronic equipment | radar |
| Complement | 7 |
Graphics

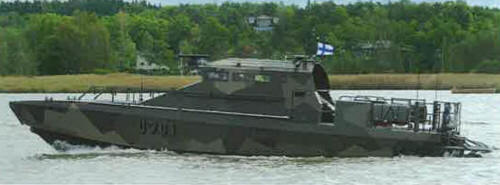

U701 2014
Project history
Assault boats, armoured. Small bow ramp. Also named as 'Watercat M18AMC' design.
Modernizations
No significant events.
Naval service
No significant events.
