KLAS HORN small sloops (1892/1918)





Klas Horn Many thanks to Wolfgang Stoehr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Matti Kurki (ex-Воевода [Voevoda])   457 Schichau, Elbing, Germany 7.1891 9.12.1891 6.1892 // 4.1918 stricken 1937
Klas Horn (ex-Посадник [Posadnik])   458 Schichau, Elbing, Germany 8.1891 14.4.1892 6.1892 // 4.1918 stricken 1937


Technical data


Displacement normal, t

400

Displacement full, t432
Length, m

60.2

Breadth, m

7.42

Draught, m

3.25 - 3.50

No of shafts

1

Machinery

1 VTE, 2 locomotive boilers

Power, h. p.

3500

Max speed, kts

21 - 22.5

Fuel, t

coal 90

Endurance, nm(kts)1640(15)
Armament

Klas Horn: 2 x 1 - 102/60 (ru), 2 x 1 - 7.6/94

Matti Kurki: 2 x 1 - 75/48 Canet, 2 x 1 - 7.6/94

Complement

65



Standard scale images


<i>Posadnik</i> 1901
Posadnik 1901


Graphics


<i>Klas Horn</i> <i>Many thanks to Wolfgang Stoehr for additional information on this page.</i>

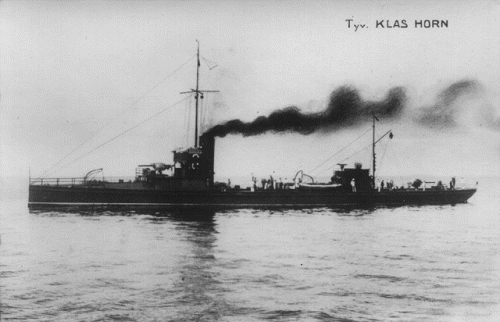

Klas Horn Many thanks to Wolfgang Stoehr for additional information on this page.


Project history

ex-Russian "torpedo cruisers", converted to dispatch vessels in WWI, abandoned by Russians and sized by Finnish troops in April 1918.

Modernizations

None.

Naval service

No significant events.
