TUIMA fast attack craft (missile) (1974-1975)





Tuuli 1978

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Tuima 11   Vympel, Rybinsk, USSR     1974 stricken 2002, to Egypt 11.2006 (767)
Tuuli 12   Vympel, Rybinsk, USSR     1974 stricken 2002, to Egypt 11.2006 (766)

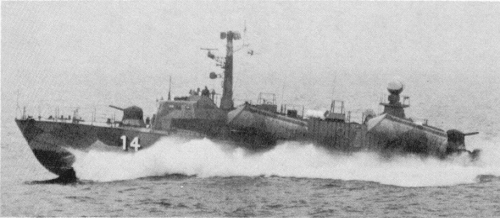

Tuisku 14   Vympel, Rybinsk, USSR     1975 stricken 2002, to Egypt 11.2006 (768)
Tyrsky 15   Vympel, Rybinsk, USSR     1975 stricken 2002, to Egypt 11.2006 (765)


Technical data


Displacement standard, t184
Displacement full, t

243
Length, m

38.6
Breadth, m

7.60
Draught, m

2.00 hull 3.10 propellers
No of shafts

3
Machinery

3 M-504B diesels
Power, h. p.

15000
Max speed, kts

42
Fuel, t

diesel oil
Endurance, nm(kts)1620(15)
Armament

4 x 1 P-15U SSM (4 P-15U), 2 x 2 - 30/71 AK-230
Electronic equipmentRangout, MR-104 Rys' radars
Complement

29


Standard scale images


<i>Tuima </i>1980
Tuima 1980


Graphics


<i>Tuuli </i>1978
Tuuli 1978


Project history

Soviet project 205ER built for export.

Modernizations

1993, Tuima; 1994, Tuuli; 1996, Tuisku, Tyrsky: - 4 x 1 P-15U SSM, Rangout, MR-104 Rys' radars; + 30 mines, Raytheon radar

Naval service

No significant events.
