FALKLAND ISLANDS
PROTEGAT patrol ship (1987/2008)

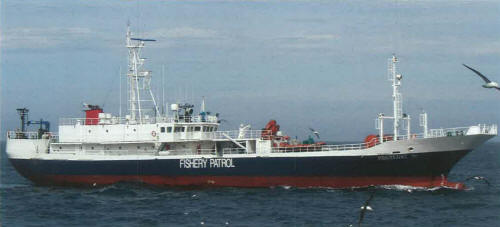

Protegat 2010
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Protegat (ex-Sumiyoshi Maru 35, ex-Chokyo Maru 35) | Miho Zoshenko KK, Shimizu, Japan | 1987 // 5.2008 | returned 1.2017 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 1207 brt |
| Length, m | 70.2 |
| Breadth, m | 10.6 |
| Draught, m | 5.60 |
| No of shafts | 1 |
| Machinery | 1 Niigata NHP30AH diesel |
| Power, h. p. | 1800 |
| Max speed, kts | 13.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 19000(10) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | JRC JMA527, Furuno FR2135, Furuno FR1525 radars |
| Complement | 16 + 5 passengers |
Graphics
Protegat 2010
Project history
Former fishing vessel.
Modernizations
None.
Naval service
No significant events.
