VALVE patrol boat (2010)
Valve 2010
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
112 Valve |
Baltic Workboats, Nasva: 112 | 2010: 112 |
none |
none |
in service (2020): 112 |
Technical data
| Displacement standard, t | 44 |
|---|---|
| Displacement full, t | 51 |
| Length, m | 23.9 |
| Breadth, m | 5.30 |
| Draught, m | 1.30 |
| No of shafts | 2 |
| Machinery | 2 MTU 10V2000 M92 diesels |
| Power, h. p. | 2720 |
| Max speed, kts | 27 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 500(15) |
| Armament | 1 x 1 - 12.7/90 (fitted for) |
| Electronic equipment | JMA 5300 radar |
| Complement | 6 |
Graphics

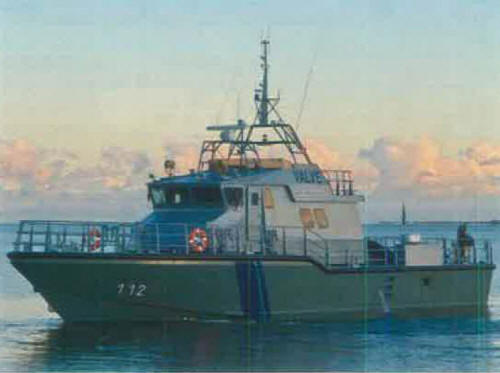

Valve 2010
Project history
Border Guard. Aluminum construction, equipped with ramp aft for 5m RHIB.
Modernizations
None.
Naval service
No significant events.
