KIE NTEM patrol craft (2011)
Kie Ntem 2011
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Kie Ntem | Q1 | Israeli SYd, Haifa, Israel | 22.2.2011 | in service (2020) | |||
| Litoral | Q2 | Israeli SYd, Haifa, Israel | 12.2010 | 22.2.2011 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 470 |
| Length, m | 61.7 |
| Breadth, m | 7.60 |
| Draught, m | 2.80 |
| No of shafts | 4 |
| Machinery | 4 MTU diesels |
| Power, h. p. | |
| Max speed, kts | 32 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3200(15) |
| Armament | 1 x 2 - 23/82 Typhoon, 2 x 1 - 12.7/79, helicopter deck |
| Electronic equipment | 2x nav. radars, Toplite e/o system |
| Complement | 35 + 24 passengers |
Standard scale images

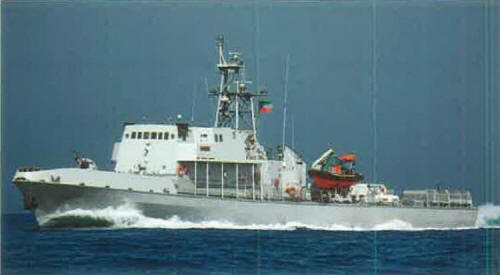

Kie Ntem 2015
Graphics
Kie Ntem 2011
Project history
Israeli OPV62 design. Fitted with small crane for two RIBs launch and recovery.
Modernizations
None.
Naval service
No significant events.
