ISLA DE BIOKO patrol boat (1988)
Isla de Bioko 1988
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
037 Isla de Bioko |
Lantana Boatyard, Lantana, USA: 037 |
1988: 037 |
none |
none |
~2012: 037 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 33 |
| Length, m | 20.7 |
| Breadth, m | 5.50 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 General Motors Detroit Diesel 8V92TI diesels |
| Power, h. p. | 1170 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 800(15) |
| Armament | 1 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
| Electronic equipment | Furuno 3600 radar |
| Complement | 12 |
Graphics

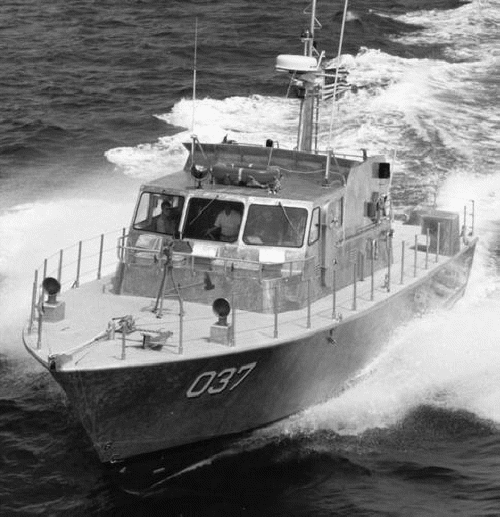

Isla de Bioko 1988
Project history
Lantana 68 design. Aluminium construction.
Modernizations
None.
Naval service
No significant events.
