CABO SAN JUAN patrol craft (2007-2008)

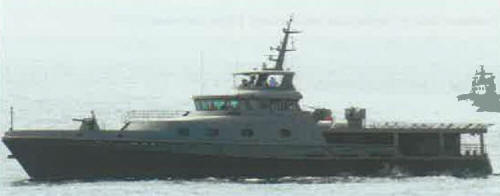

Estuario del Muni 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Cabo San Juan | P400 | More, Feodosiya, Ukraine | 2007 | in service (2020) | |||
| Estuario de Muni | More, Feodosiya, Ukraine | 2008 | in service (2020) |
Technical data
| Displacement standard, t | 320 |
|---|---|
| Displacement full, t | |
| Length, m | 48.9 |
| Breadth, m | 9.00 |
| Draught, m | 2.50 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3516C diesels |
| Power, h. p. | 6400 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3000(14) |
| Armament | 1 x 2 - 30/71 AK-230, 2 x 2 - 25/82 2M-3M, helicopter deck |
| Electronic equipment | 2x nav. radars |
| Complement | 30 |
Standard scale images
Cabo San Juan 2010
Graphics
Estuario del Muni 2008
Project history
Ukrainian-designed offshore patrol vessels, project PV50M. Fitted with a small crane for RIB launch and recovery.
Modernizations
None.
Naval service
No significant events.
