GC11 patrol boat (1985)
PM11 2003
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
GC11, 2003- PM11 |
Swiftships, Morgan City, USA: CG11 |
1985: CG11 |
none |
None |
in service (2019): PM11 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 48 |
| Length, m | 23.5 |
| Breadth, m | 6.10 |
| Draught, m | 1.52 |
| No of shafts | 3 |
| Machinery | 3 General Motors 12V71TI diesels |
| Power, h. p. | 1200 |
| Max speed, kts | 26 |
| Fuel, t | diesel oil 6 |
| Endurance, nm(kts) | 600(18) |
| Armament | 1 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90, 1 x 1 - 81/12 mortar |
| Electronic equipment | Furuno radar |
| Complement | 10 |
Graphics

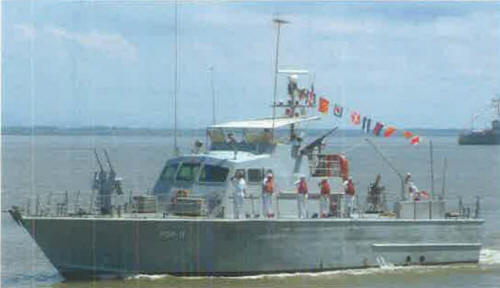

PM11 2003
Project history
US Swiftships 77ft class patrol boat.
Modernizations
2003: - 1 x 1 - 20/70; + 1 x 2 - 12.7/90
Naval service
No significant events.
