FIGHTING SHIPS OF THE WORLD
EL SALVADOR
COASTAL FORCES
GC10 patrol boat (1984)
PM10 2011
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
GC10, 2003- PM10 |
Swiftships, Morgan City, USA: CG10 |
1984: CG10 |
none |
None |
in service (2019): PM10 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 36 |
| Length, m | 20.0 |
| Breadth, m | 5.59 |
| Draught, m | 1.52 |
| No of shafts | 2 |
| Machinery | 2 General Motors 12V71TI diesels |
| Power, h. p. | 1350 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 500(18) |
| Armament | 1 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90, 1 x 1 - 81/12 mortar |
| Electronic equipment | radar |
| Complement | 6 |
Graphics

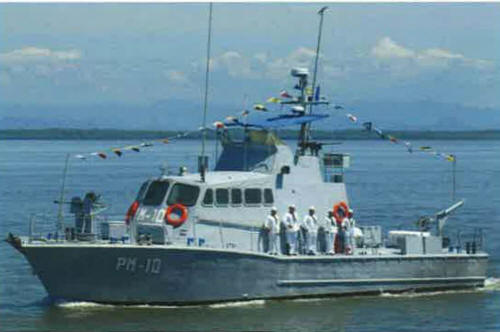

PM10 2011
Project history
US Swiftships 65ft class patrol boat.
Modernizations
1996: - radar; + Furuno radar
Naval service
No significant events.
