FIGHTING SHIPS OF THE WORLD
EGYPT
SUBMARINES
849 submarines (1983-1984)

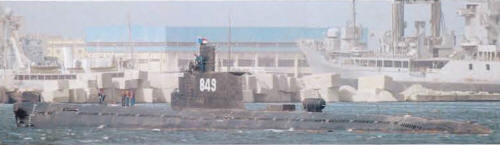

No 849 2006
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 849 | Jiangnan SY, Shanghai, China | 28.3.1983 | in service (2019) | ||||
| 852 | Jiangnan SY, Shanghai, China | 28.3.1983 | in service (2019) | ||||
| 855 | Jiangnan SY, Shanghai, China | 3.1.1984 | in service (2019) | ||||
| 858 | Jiangnan SY, Shanghai, China | 3.1.1984 | in service (2019) |
Technical data
| Displacement standard, t |
|
|---|---|
| Displacement normal, t | 1470 / 1830 |
| Length, m | 76.6 |
| Breadth, m | 6.70 |
| Draught, m | 4.95 |
| No of shafts | 2 |
| Machinery | 2 1Z38 diesels / 2 electric motors |
| Power, h. p. | 4800 / 2700 |
| Max speed, kts | 15 / 13 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 7400(9.2) / 350(2) |
| Armament | 8 - 533 TT (6 bow, 2 stern, 14 or 28 mines) |
| Electronic equipment | Flag (analog) radar, H/SQZ-D sonar |
| Complement | 58 |
| Diving depth operational, m | 240 |
Standard scale images
849 2010
Graphics
No 849 2006
Project history
Chinese Type 033 mod. submarines.
Modernizations 12.
1993-1/1997, all: - 8 - 533 TT (6 bow, 2 stern, 14 or 28 mines), H/SQZ-D sonar; + 8 - 533 TT (6 bow, 2 stern, 14 (inc. Sub-Harpoon SSM (4 UGM-84A)) or 28 mines), CSU-83, Loral HF active sonars, AR-700 ECM suite
Naval service
No significant events.
